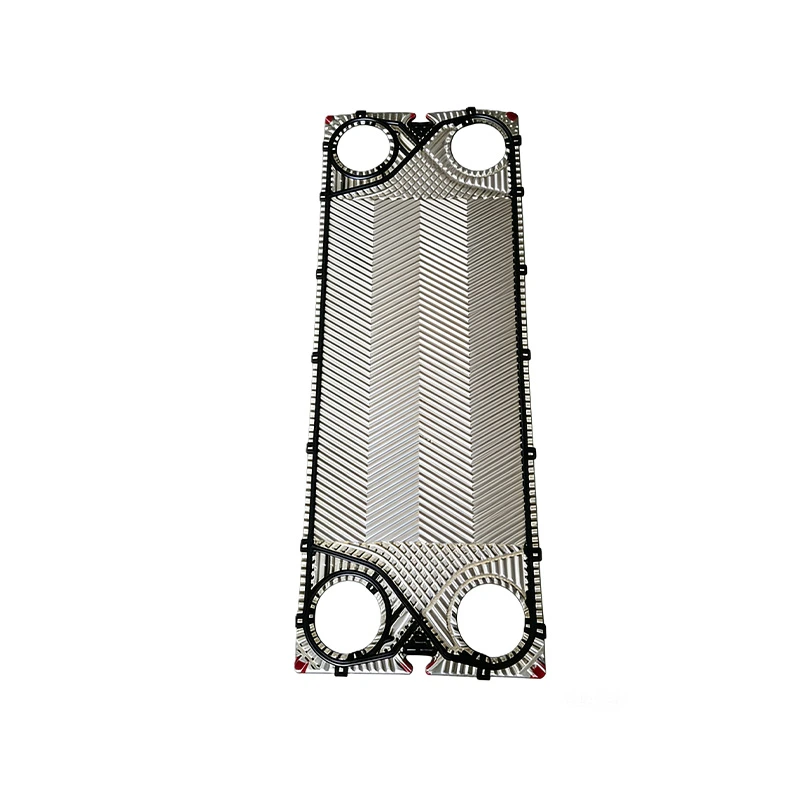

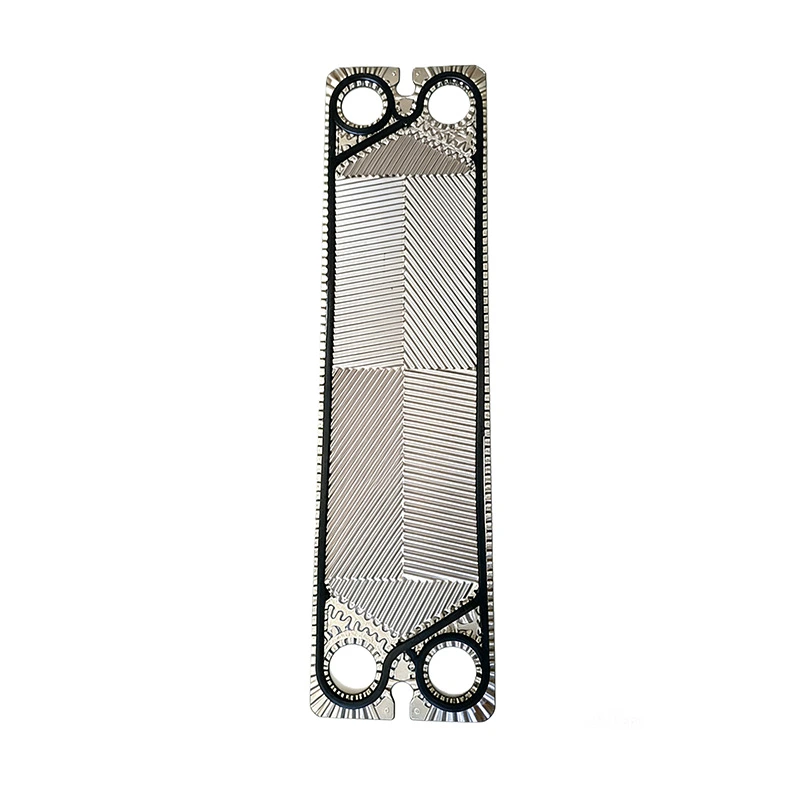

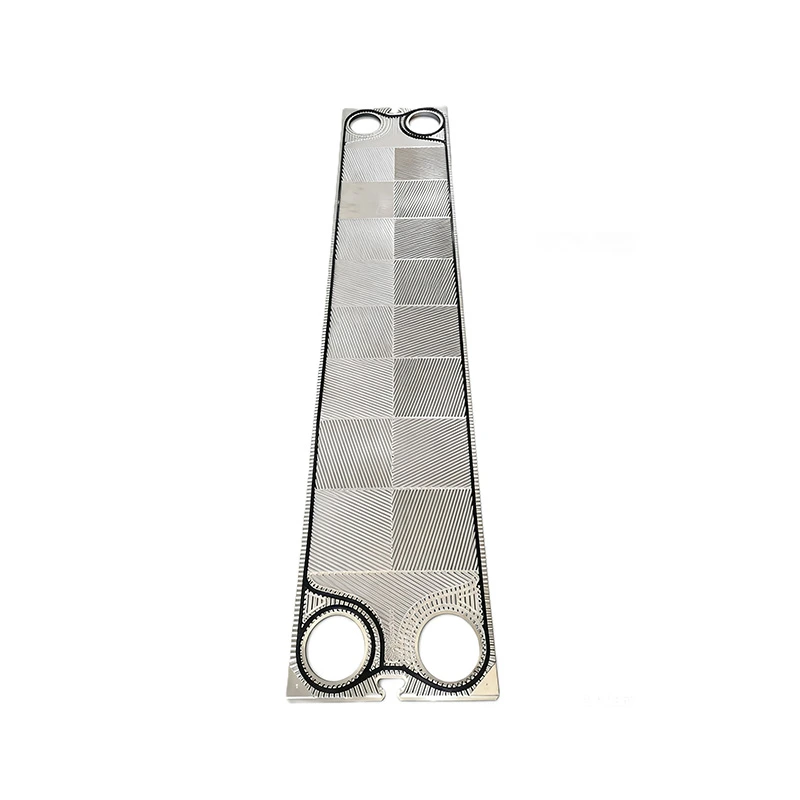

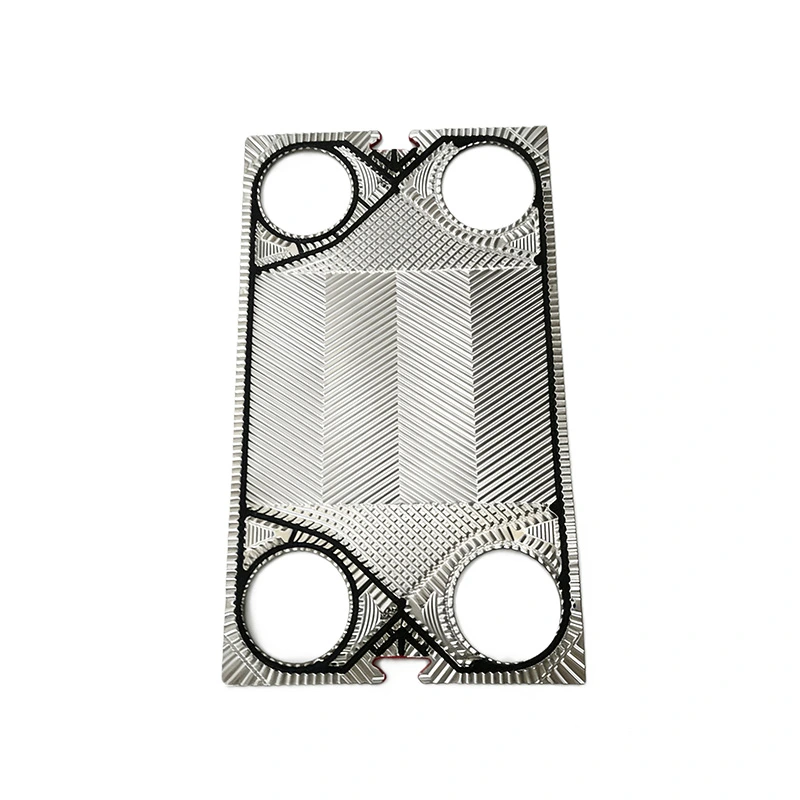

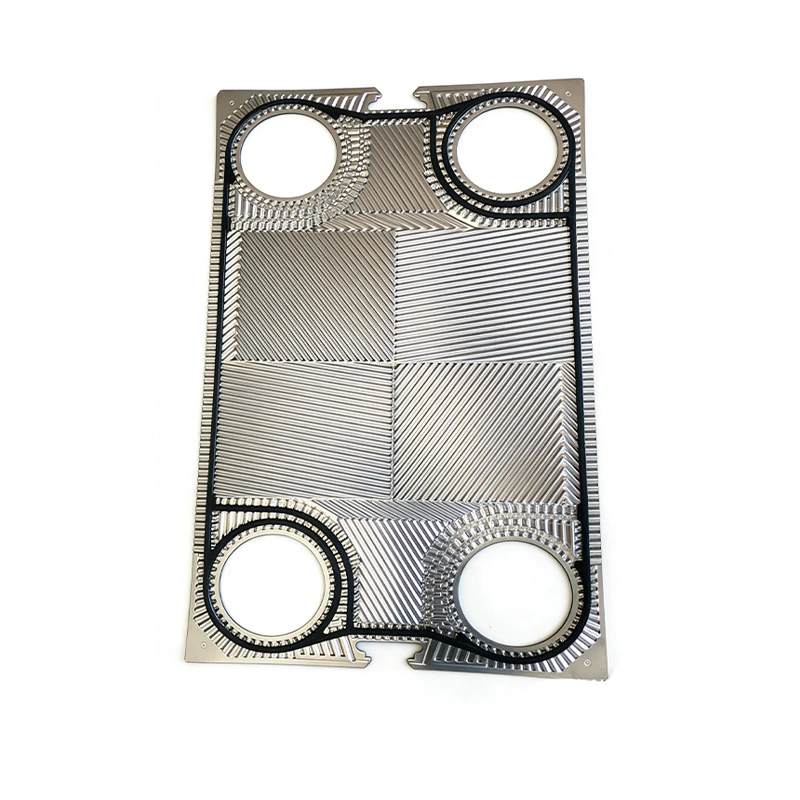

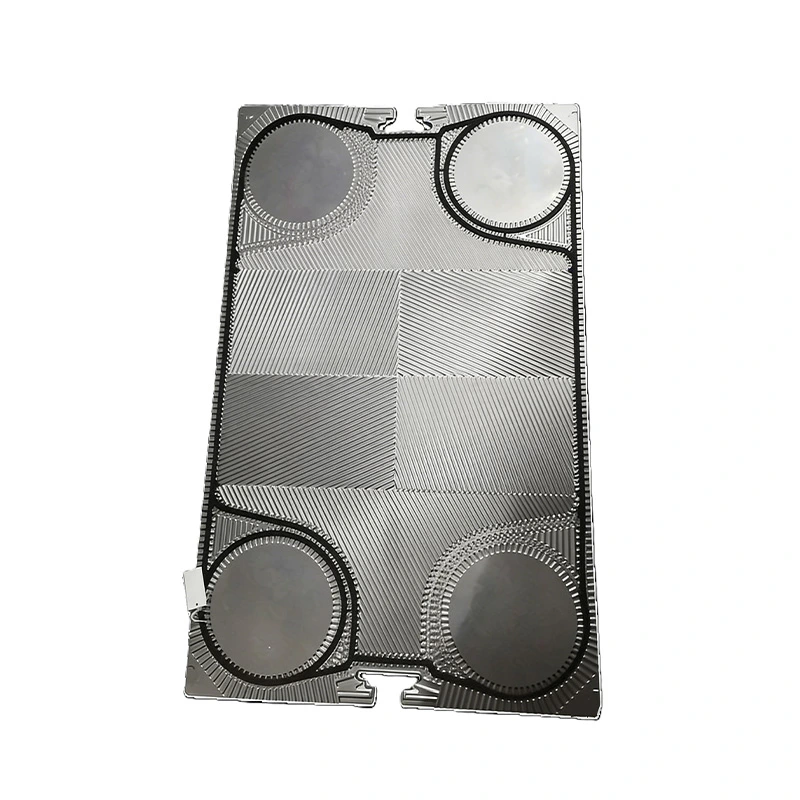

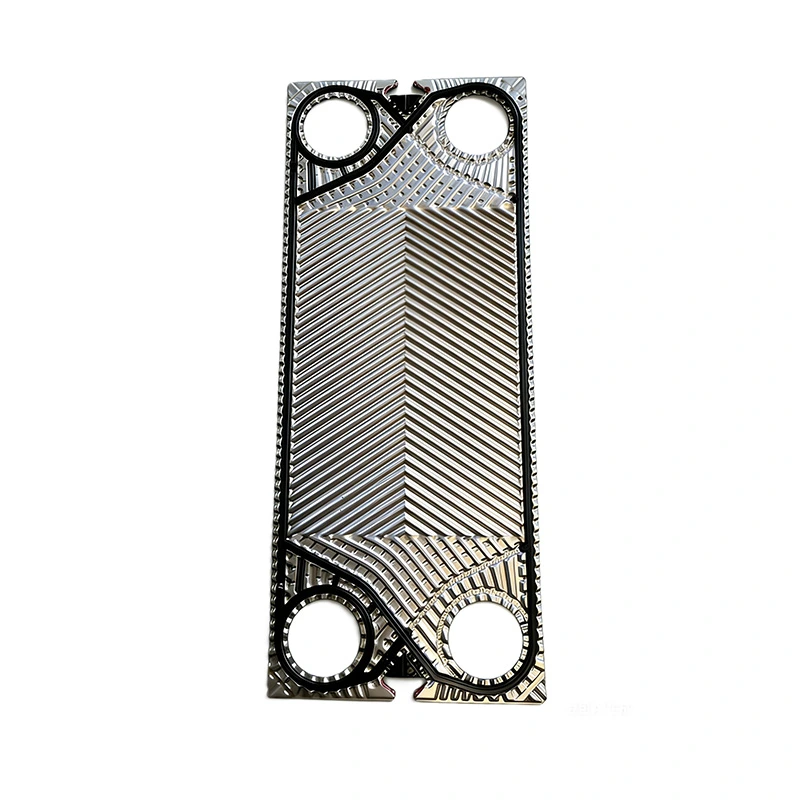

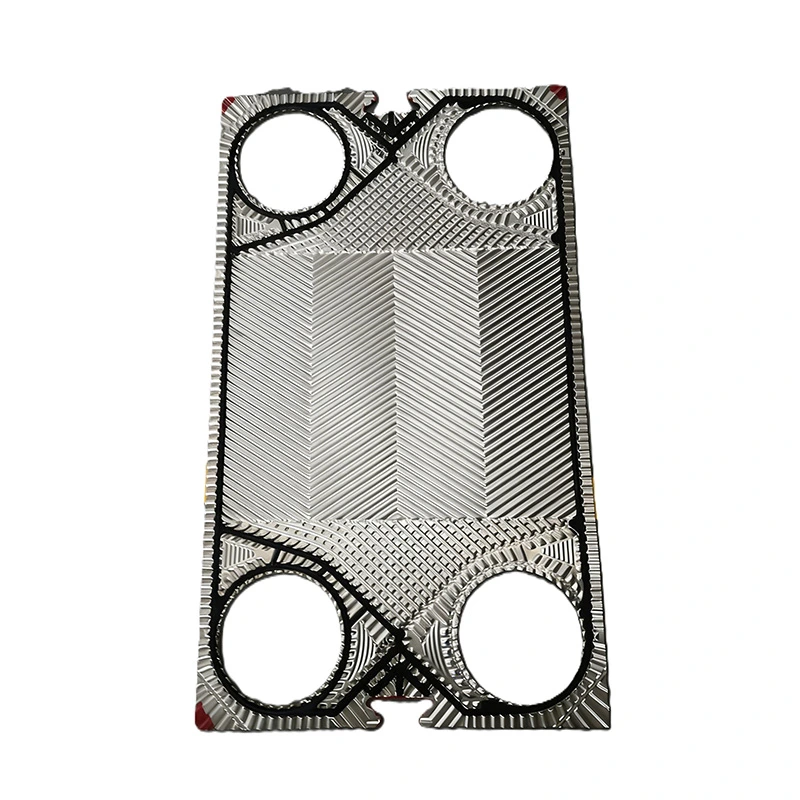

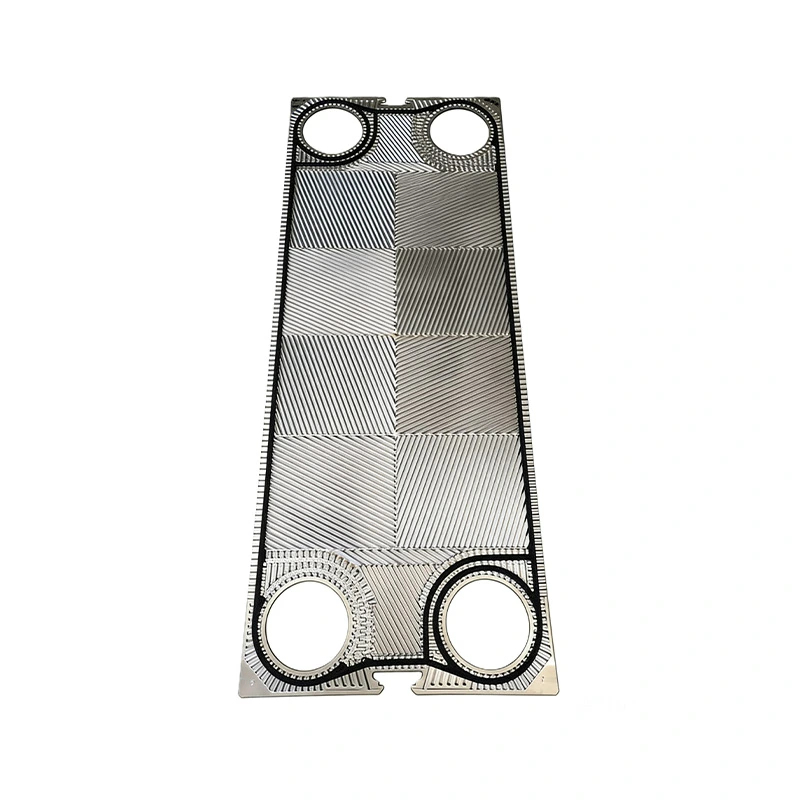

TRANTER Plate Heat Exchanger Plates And Gaskets Spare Parts

Boas has its own moulds and production factories, which can ensure product quality and delivery time,regardless of the brands,also our plates spare parts are fully compatible with the original TRANTER series heat exchangers,ensuring high performance and durability.

Our comprehensive range of services includes supplying replacement parts for heat exchangers such as TRANTER UX,UFX,S,SX series, GCP series, GX,GXD series etc. and other non-OEM models.

The below show you listed models are just part of the items,so pls feel free to sent us all your needed and inquires an email at rose@plateheatexchangercn.com, and we are able to assist you further for details, ,and you can replace your plates and gaskets at a lower price.

TRANTER UX Series

TRANTER UFX series

TRANTER S/SX/TW/TD/GM series

TRANTER GX series

TRANTER GL/GC series

TRANTER GCD/GCP series

TRANTER UXP series

TRANTER GXP/GF series

TRANTER GXD series

TRANTER HX series

TRANTER GFP/GLD/GLP/TW series

TRANTER HXD/HXP series

Pattern:H,V,Free Flow

Material: 304/304L, 316/316L, 254SMO, Titanium, Hastelloy C-276, Nickel 200/201.

Plate Thickness:0.4/0.5/0.6MM

Rubber	Color Code	Shore A Hardness	Instantaneous Temperature		Continuous Operating Temperature
			Min (°C/℉)	Max  (°C/℉)	Min  (°C/℉)	Max (°C/℉)
NBR Standard		75±5	-30/-22	110/230	-10/14	100/212
NBR Food		75±5	-30/-22	110/230	-10/14	100/212
NBR High Temperature		75±5	-30/-22	120/248	0/32	110/230
NBR High Temperature Food		75±5	-30/-22	120/248	0/32	110/230
HNBR		78±5	-30/-22	160/320	-20/-4	150/302
EPDM Standard		80±5	-54/-65.2	150/302	-10/14	140/284
EPDM Food		80±5	-54/-65.2	150/302	-10/14	140/284
EPDM High Temperature		80±5	-54/-65.2	165/339	0/32	155/311
EPDM High Temperature Food		80±5	-54/-65.2	165/329	0/32	155/311
Viton A		80±5	-15/-5	200/392	5/41	180/356
Viton G		80±5	-15/-5	200/392	5/41	180/356
NEOPREN/CR		80±5	-30/-22	110/230	-25/-13	80/176

TYPE OF GASKETS:Glue type/Click -on/Lock type/S nap on
