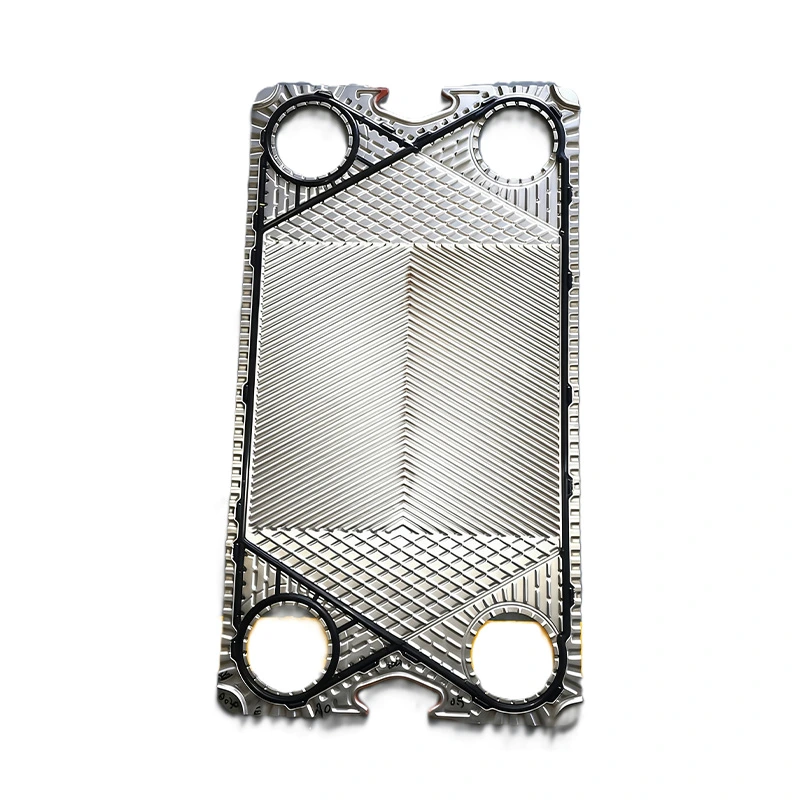

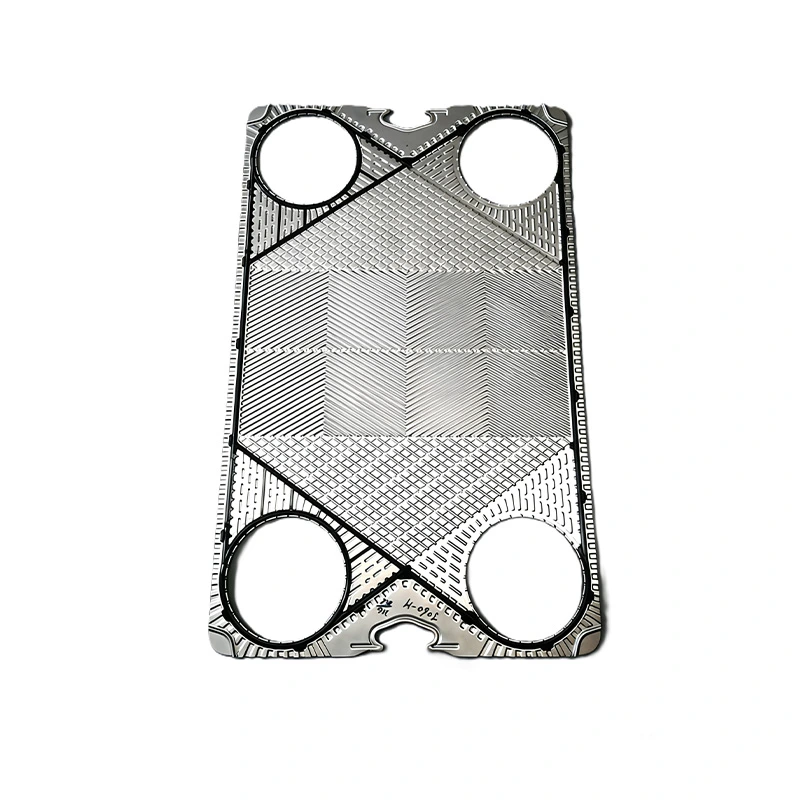

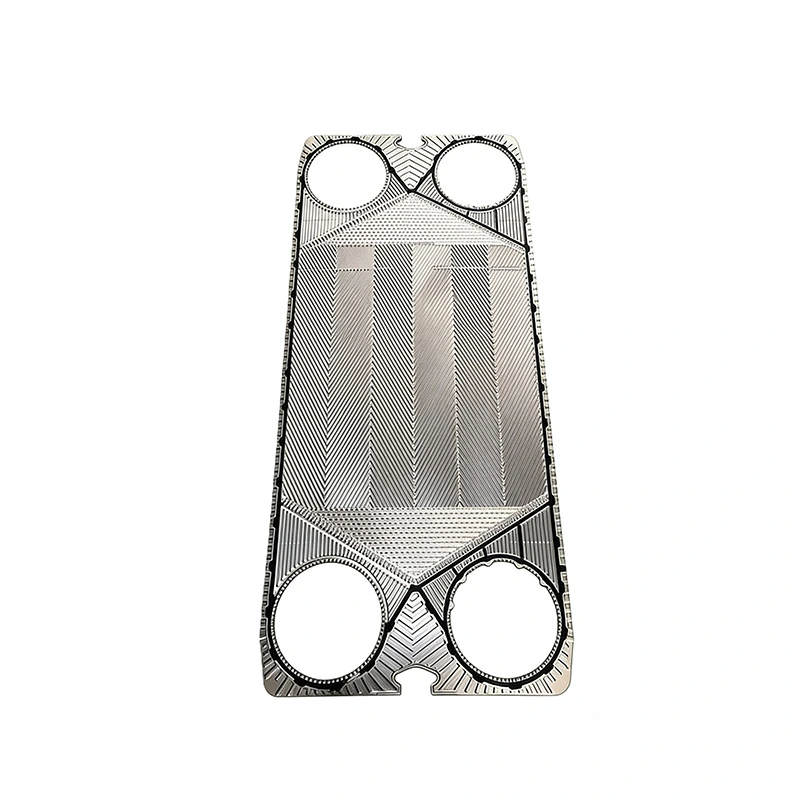

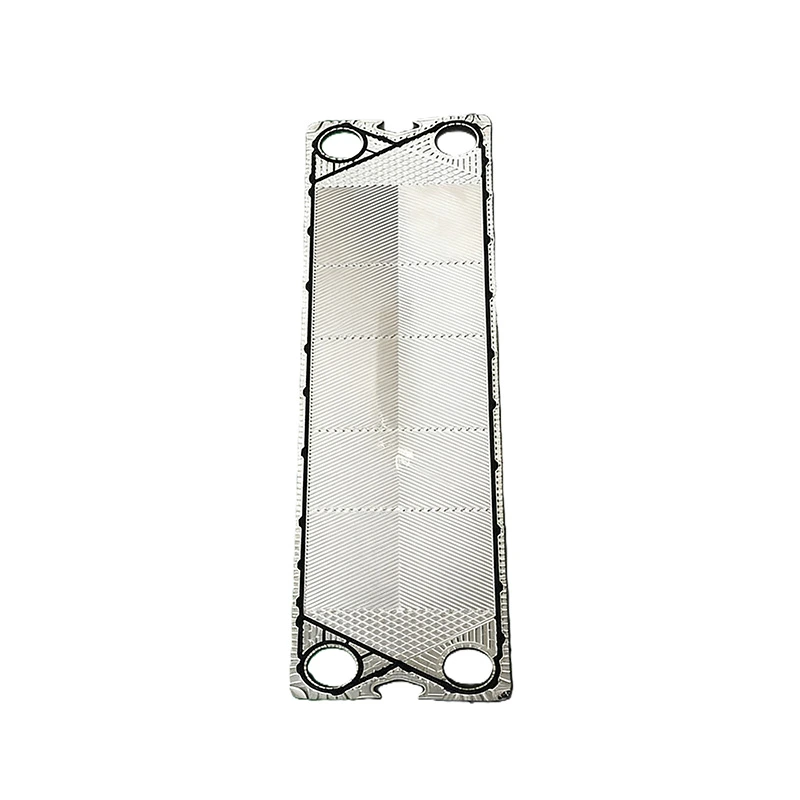

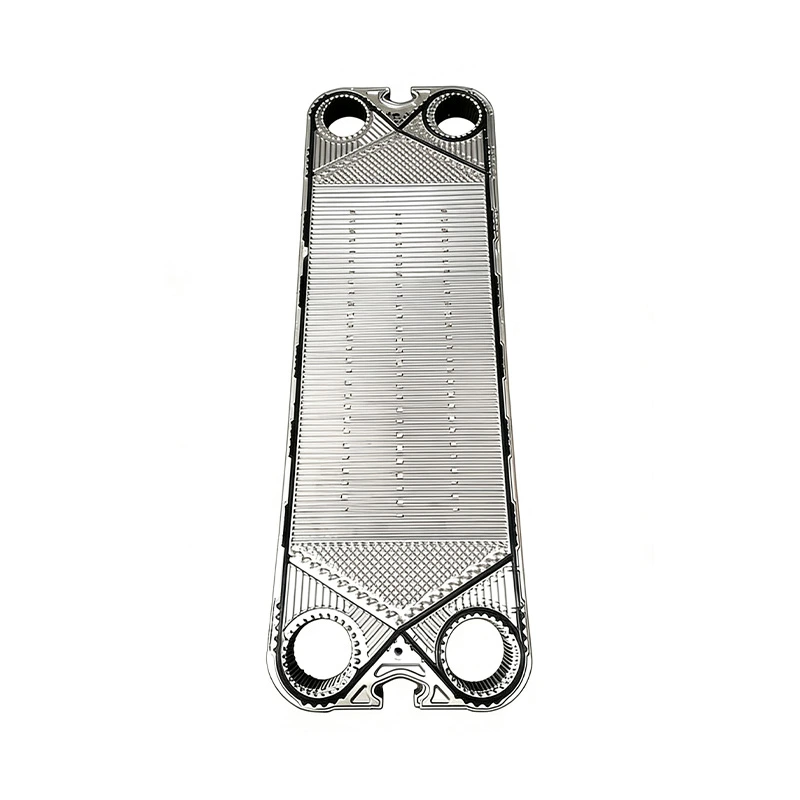

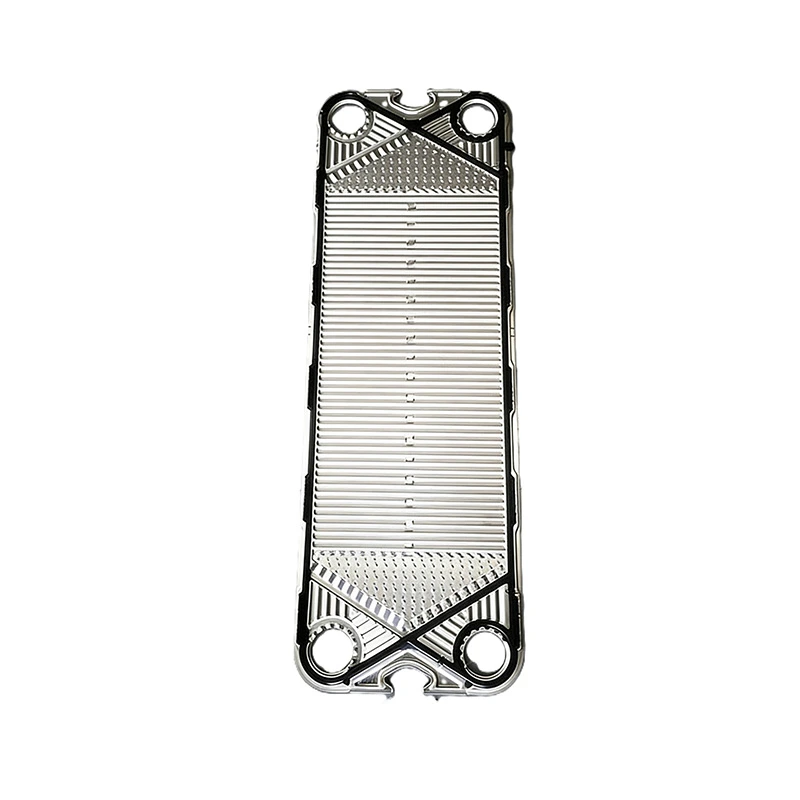

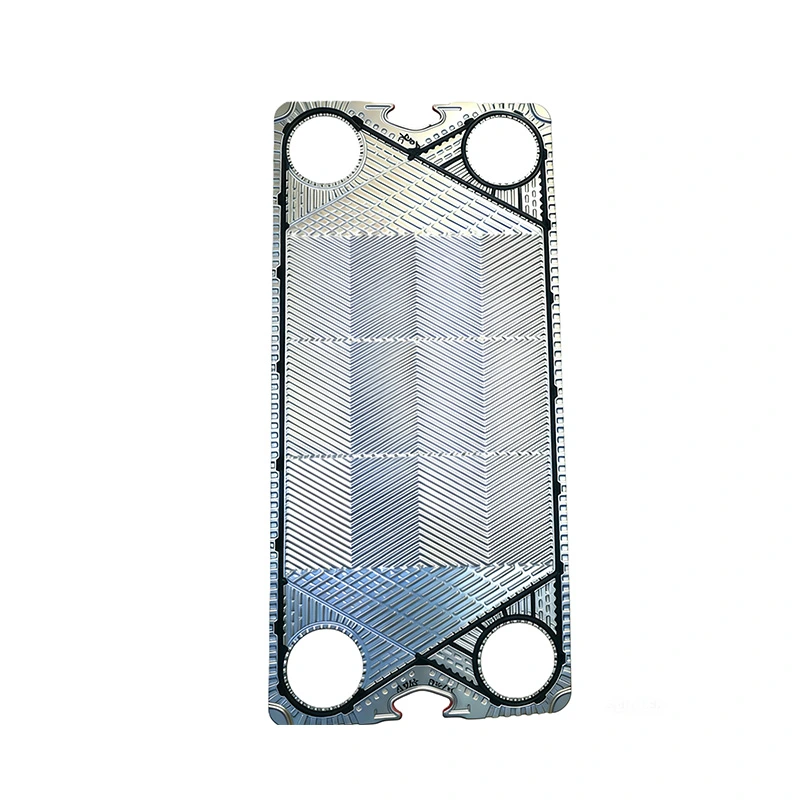

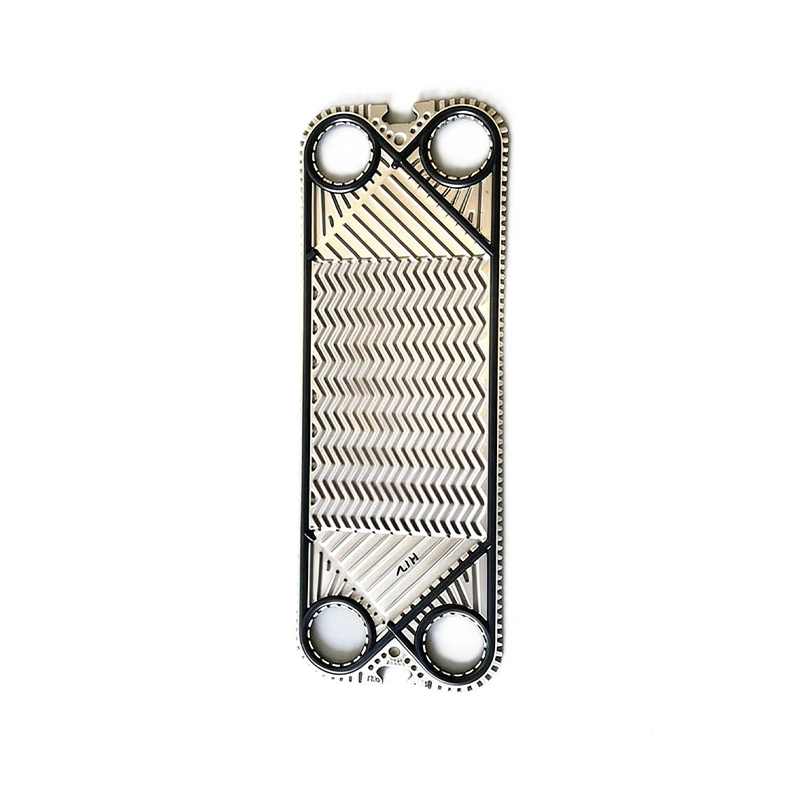

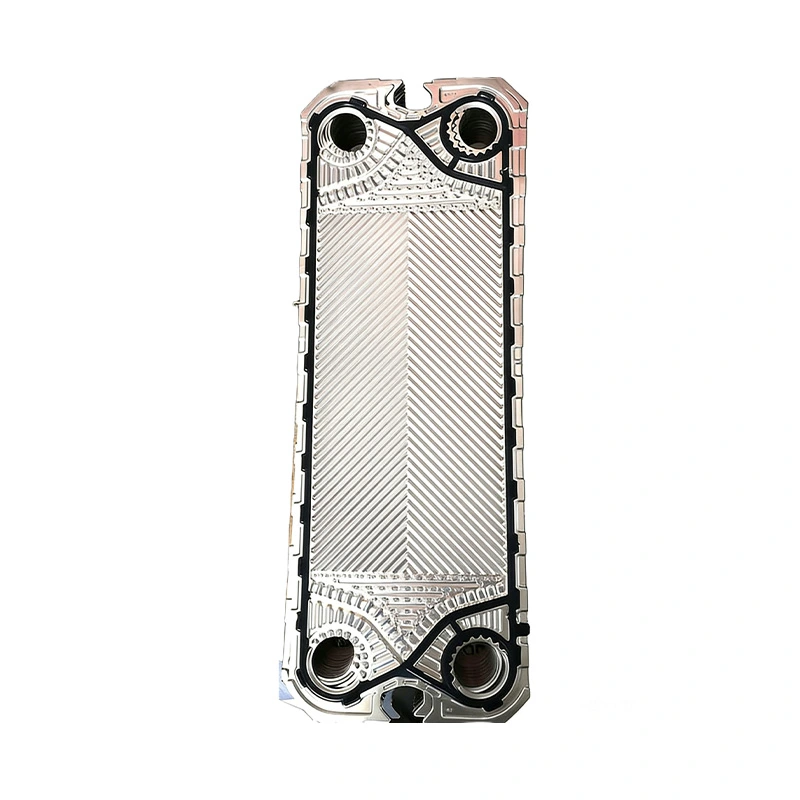

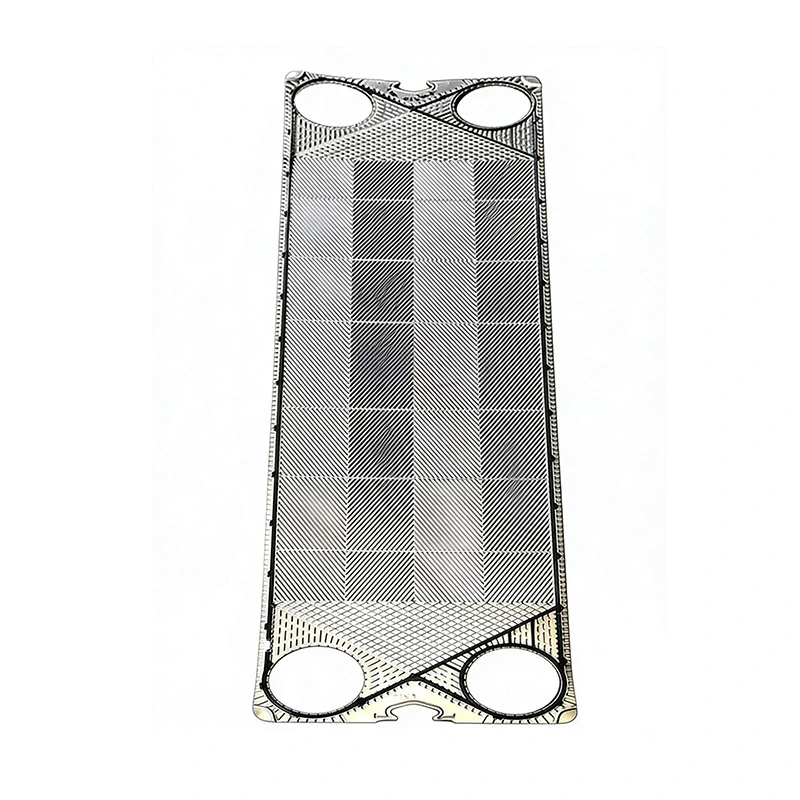

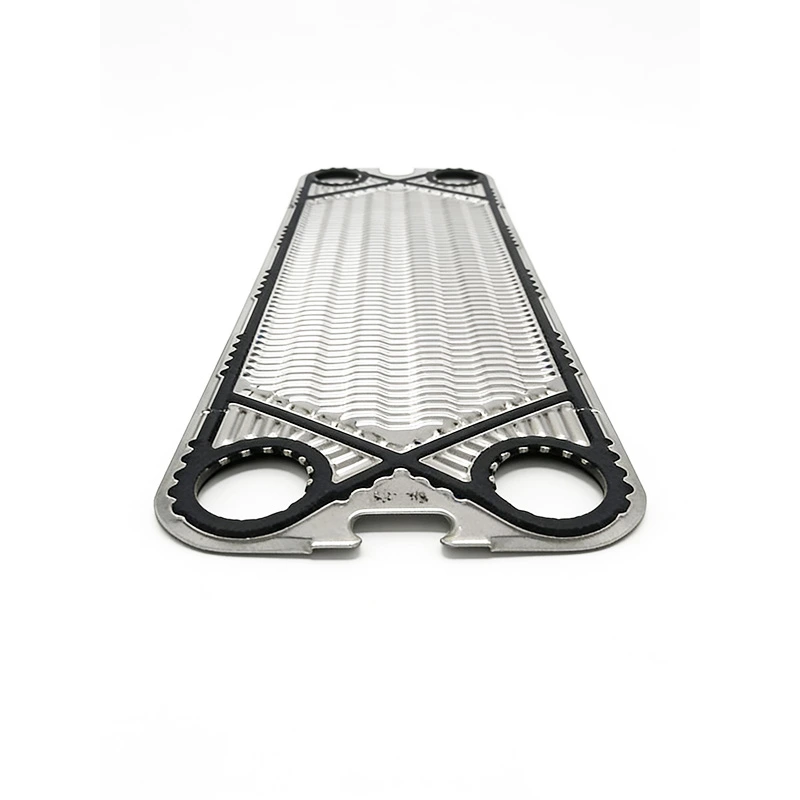

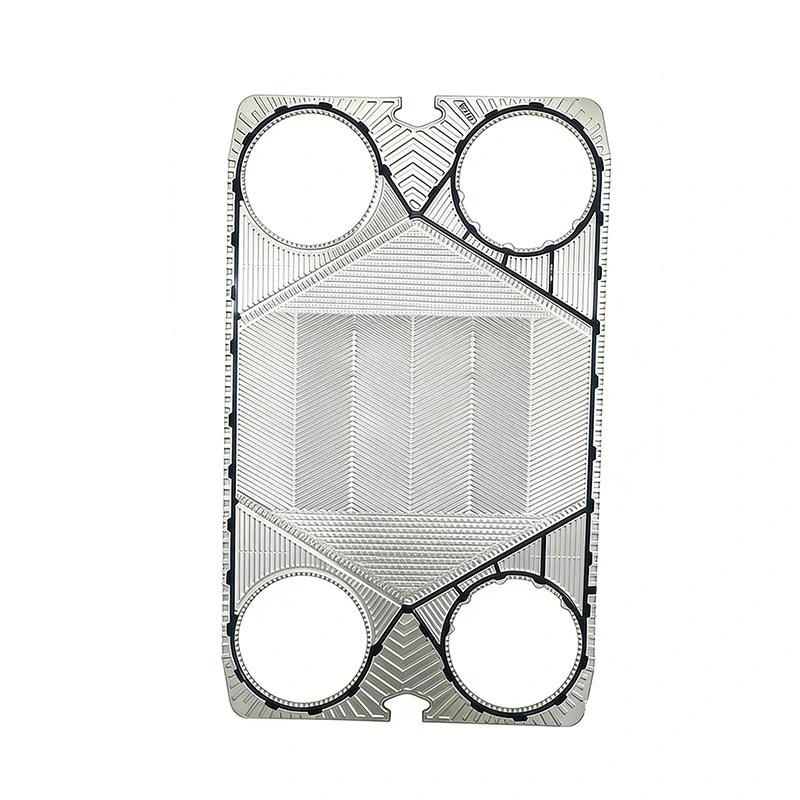

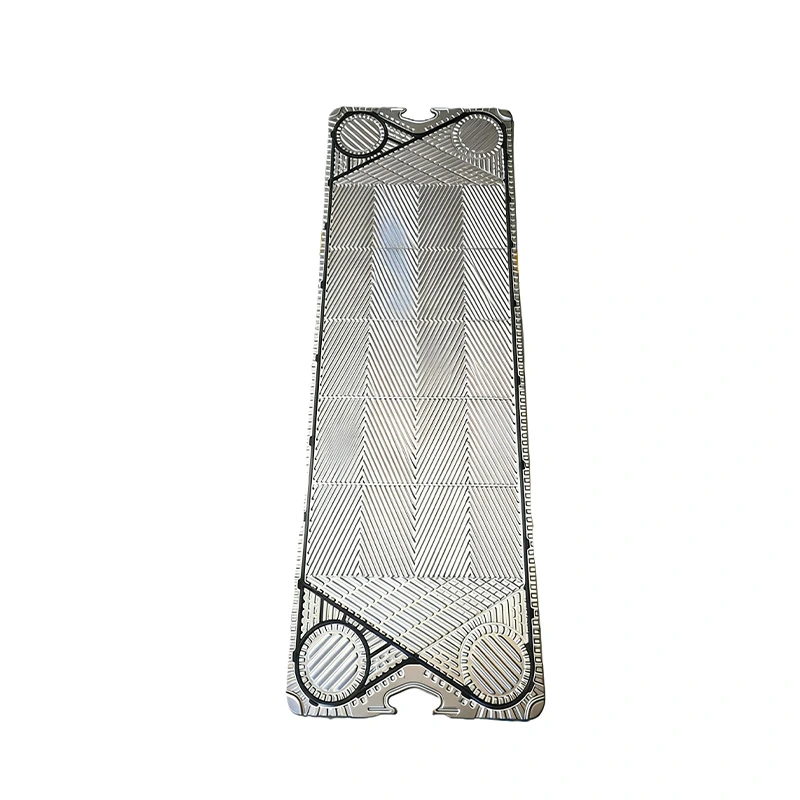

Our comprehensive range of services includes supplying replacement parts for heat exchangers such as APV SR,R,TR,J,B series and other non-OEM models.
Boas has its own moulds and production factories, which can ensure product quality and delivery time,regardless of the brands,also our plates spare parts are fully compatible with the original APV series heat exchangers,ensuring high performance and durability.
Our comprehensive range of services includes supplying replacement parts for heat exchangers such as APV SR,R,TR,J,B series and other non-OEM models.
The below show you listed models are just part of the items,so pls feel free to sent us all your needed and inquires an email at rose@plateheatexchangercn.com, and we are able to assist you further for details ,and you can replace your plates and gaskets at a lower price.
APV SR Series
| SR1 | SR6AG | SR9 | SR14AH | SR14AG | SR23AO |
| SR2 | SR6GH | SD9 | SR14AN | SR14GD | SR23VO |
| SR3 | SR6GL | SR35 | SR14AP | SR14AD | SR23PV |
| SR6AA | SR38 | SR95 |
APV R series
| R5 | ER5 | R6 | R8 | R10 | R14 | R23 | R40 | R55 | R66 | R86 | R89 |
| R106 | R145 | R235 | R405 |
APV TR series
| TR1 | TR9AL | TR9AV | TR9GL | TR9GN | LR9AL | LR9GL | LR9GN | LD9AL | LD9GL | LD9GN |
APV J series
| J060 | J092 | J107 | J185 | Q030D | Q055D | Q080D | QE055 | QE080 |
| A055 | A085 | LEO039 | LEO080 | Q030E | Q055E | Q080E |
APV B series
| B063L | B063S | B110L | B110S | B134L | B134S | B158L | B158S | B181S | B205L | B205S |
APV Pasilac series
| T4 | R55 | D37 | K34 | K55 | K71 | H12 | H17 |
| N25 | N35 | N50 | M60 | M92 | M107 | M185 |
Other APV models
| JR | WHX | HMB | P105 | P190 | CHF130 | FFPE | RFF SER III | FFLE | RFFPE | U2 |
Pattern:H,V,Free Flow
Material: 304/304L, 316/316L, 254SMO, Titanium, Hastelloy C-276, Nickel 200/201.
Plate Thickness:0.4/0.5/0.6MM
| Material | Applicable Mediums | Thickness |
| 304SS | Pure Water/Edible oil Ethanol | 0.4/0.5/0.6 |
| 316SS | Water/ Edible oil/ Ethanol/ Carbonic acid/ 30% Sulphuric acid | 0.4/0.5/0.6 |
| 254SMO | Saline / Inorganic acid | 0.6 |
| Titanium | Sea water/130° C Chloride | 0.5 /0.6 |
| Hastelloy C-276 | Organic acid / High temperature HF acid/ Hydrochloric acid (<40%) / Phosphoric acid (< 50%) / Chloride / Fluoride | 0.6 |
| Nickle 200/201 | High temperature 50~70% Alkali | 0.6 |
| Rubber | Color Code | Shore A Hardness | Instantaneous Temperature | Continuous Operating Temperature | ||
| Min (°C/℉) |
Max (°C/℉) |
Min (°C/℉) |
Max (°C/℉) |
|||
| NBR Standard |  |
75±5 | -30/-22 | 110/230 | -10/14 | 100/212 |
| NBR Food |  |
75±5 | -30/-22 | 110/230 | -10/14 | 100/212 |
| NBR High Temperature |  |
75±5 | -30/-22 | 120/248 | 0/32 | 110/230 |
| NBR High Temperature Food |  |
75±5 | -30/-22 | 120/248 | 0/32 | 110/230 |
| HNBR |  |
78±5 | -30/-22 | 160/320 | -20/-4 | 150/302 |
| EPDM Standard |  |
80±5 | -54/-65.2 | 150/302 | -10/14 | 140/284 |
| EPDM Food |  |
80±5 | -54/-65.2 | 150/302 | -10/14 | 140/284 |
| EPDM High Temperature |  |
80±5 | -54/-65.2 | 165/339 | 0/32 | 155/311 |
| EPDM High Temperature Food |  |
80±5 | -54/-65.2 | 165/329 | 0/32 | 155/311 |
| Viton A |  |
80±5 | -15/-5 | 200/392 | 5/41 | 180/356 |
| Viton G |  |
80±5 | -15/-5 | 200/392 | 5/41 | 180/356 |
| NEOPREN/CR |  |
80±5 | -30/-22 | 110/230 | -25/-13 | 80/176 |
TYPE OF GASKETS:Glue type/Click -on/Lock type/S nap on
If you have any questions about the product or if you are experiencing any difficulties, please feel free to contact us.
