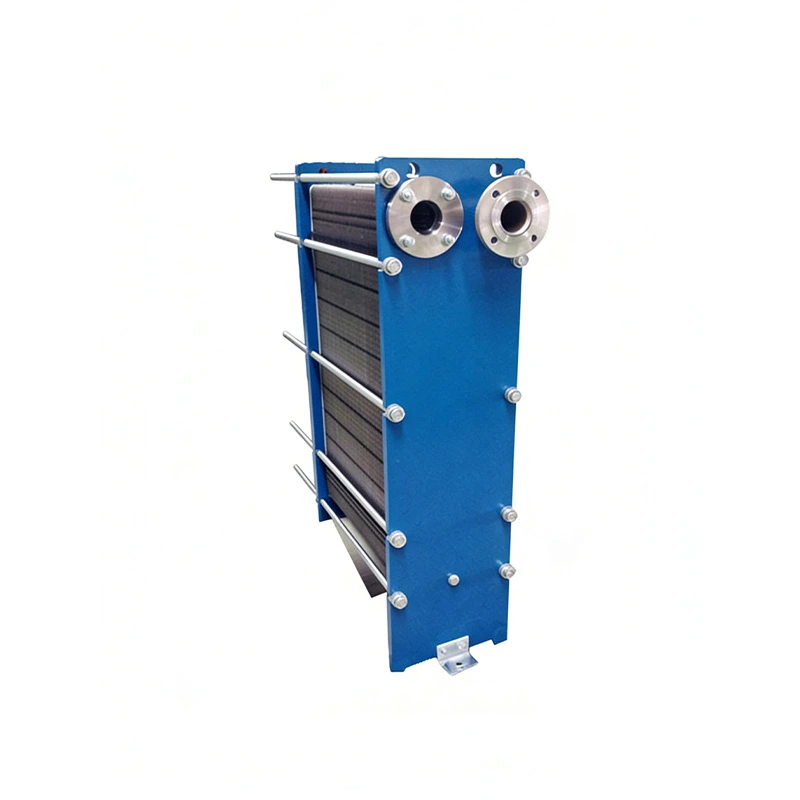

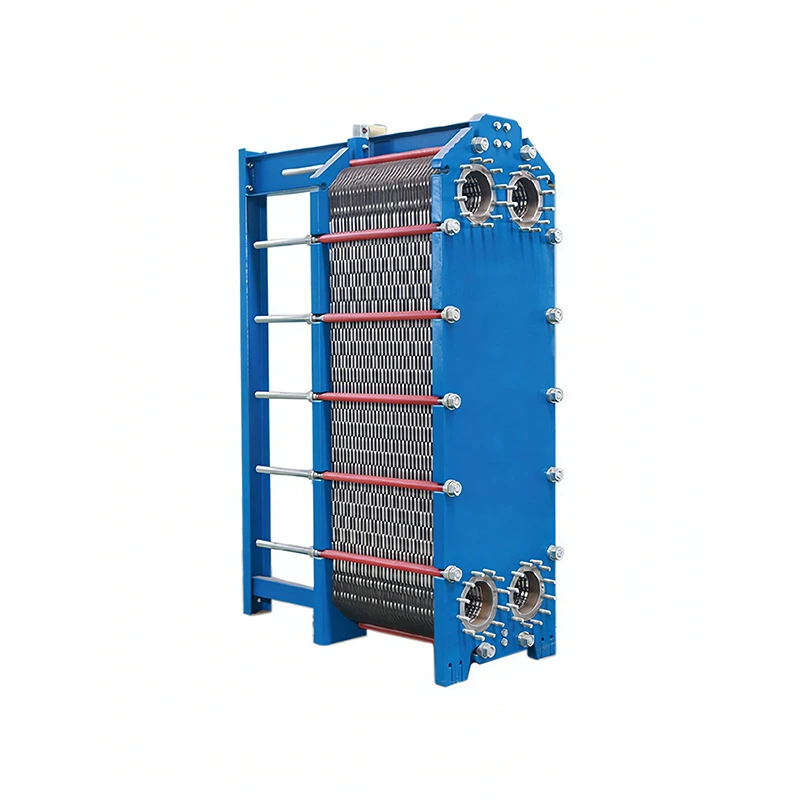

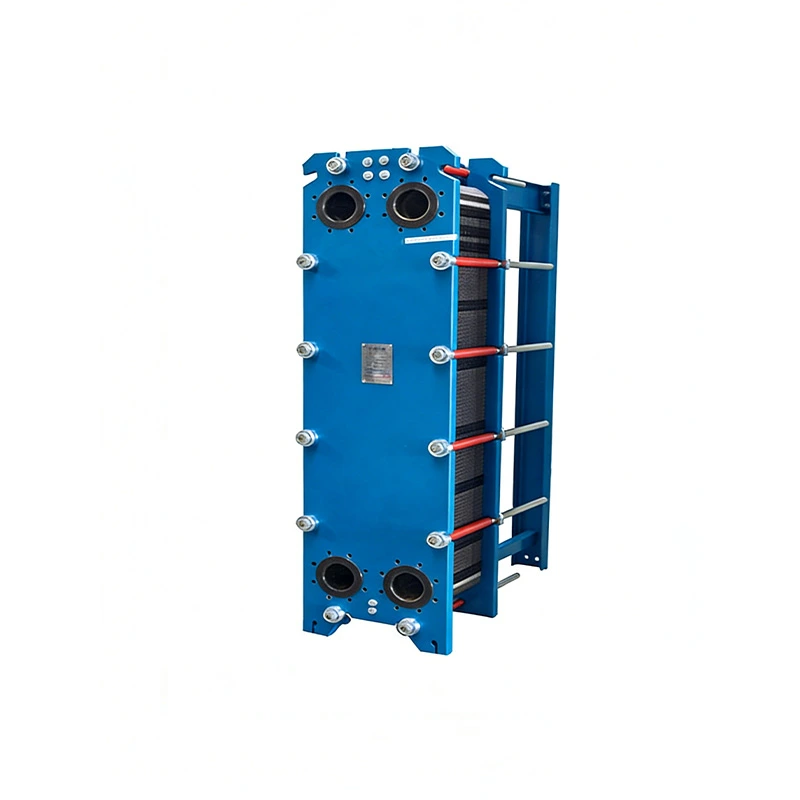

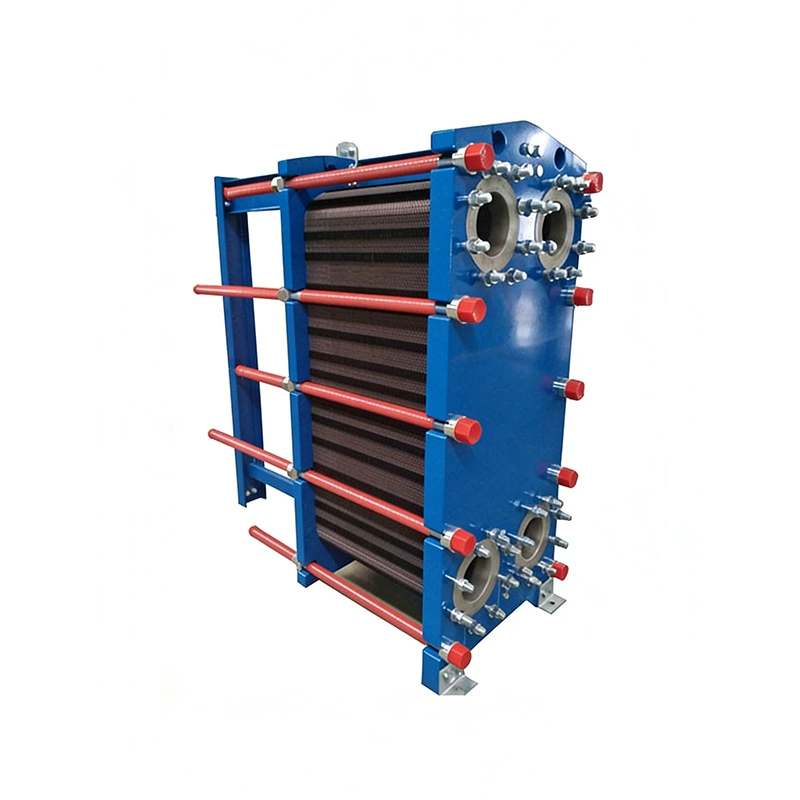

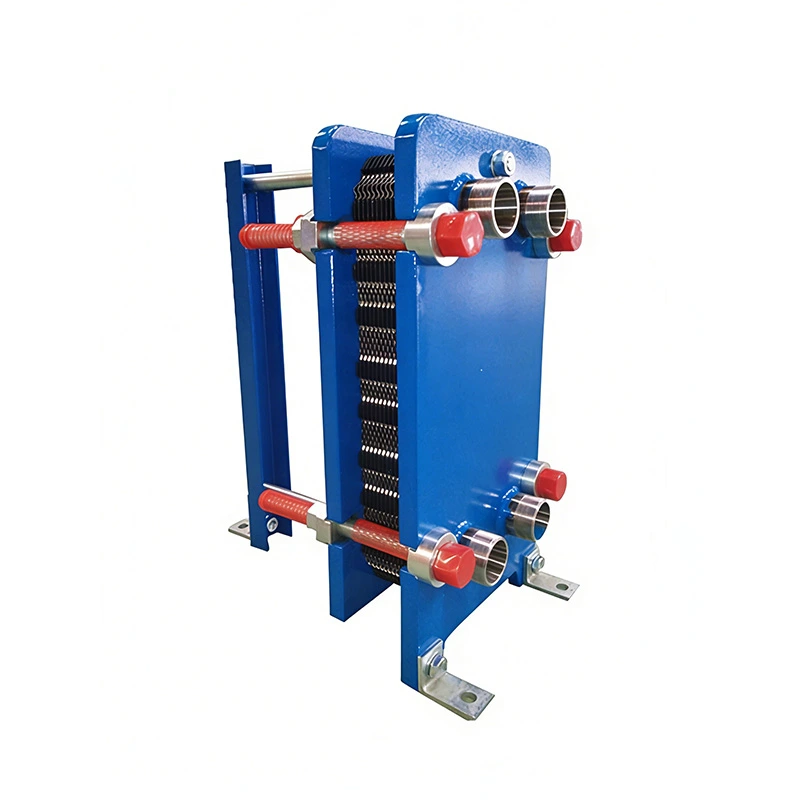

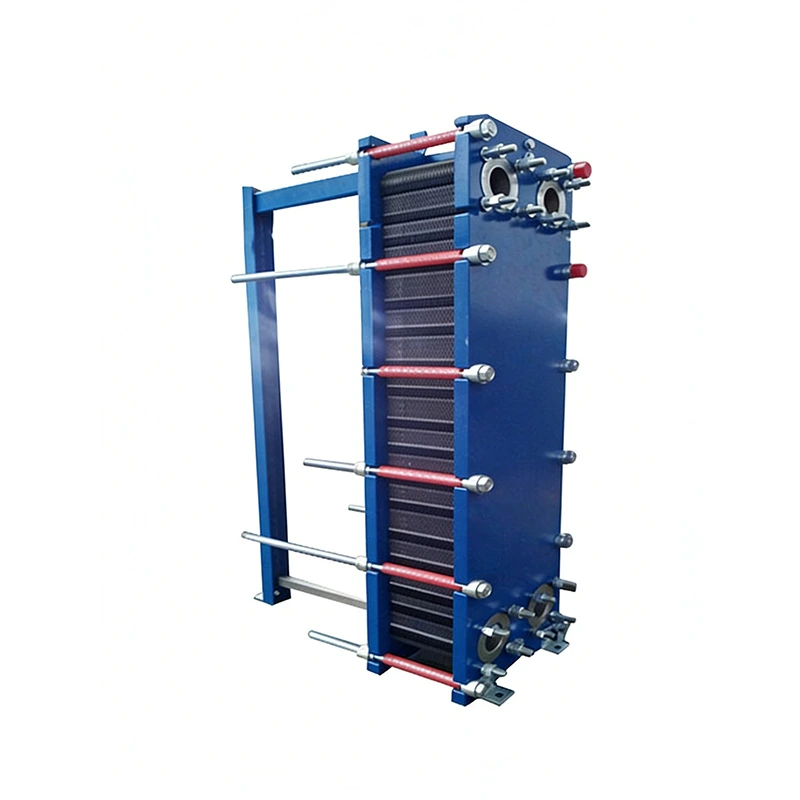

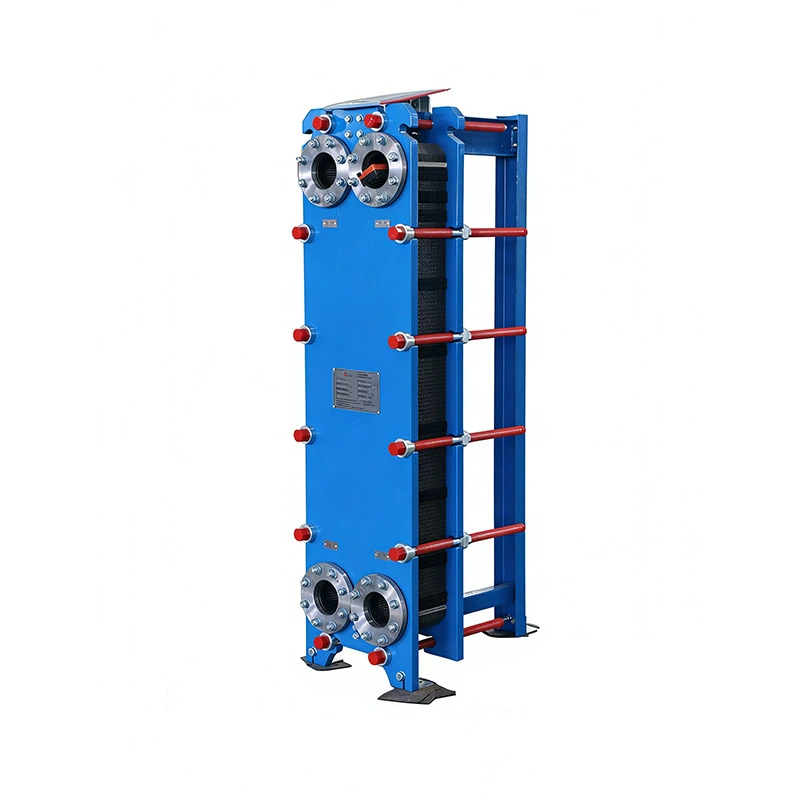

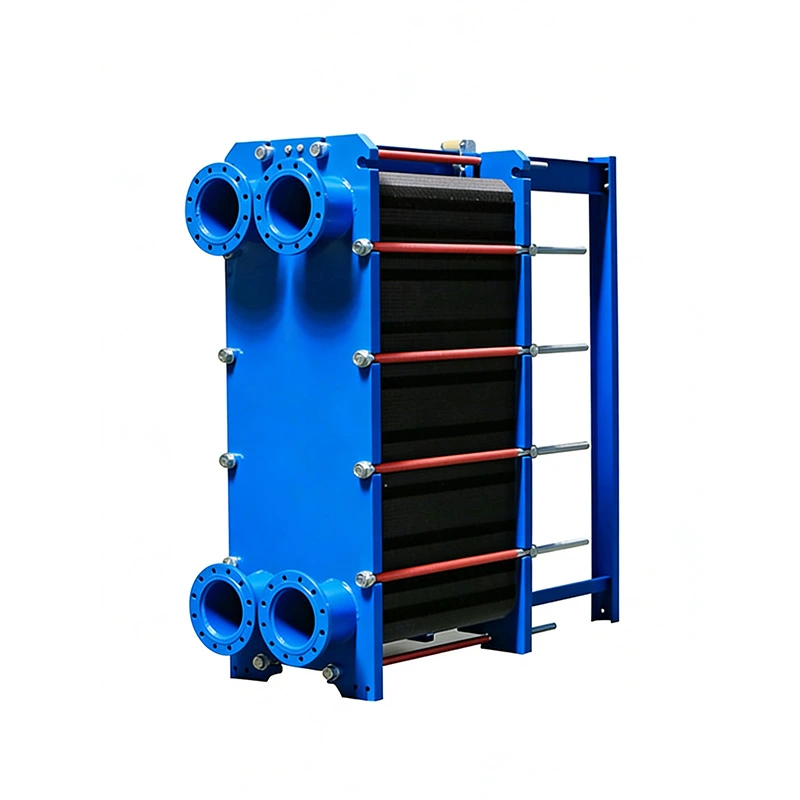

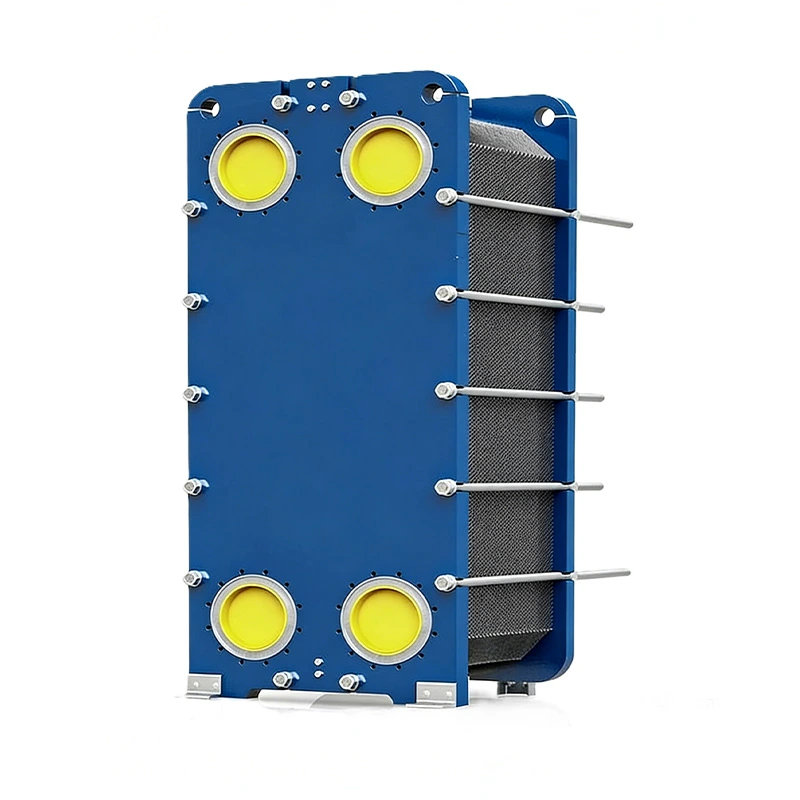

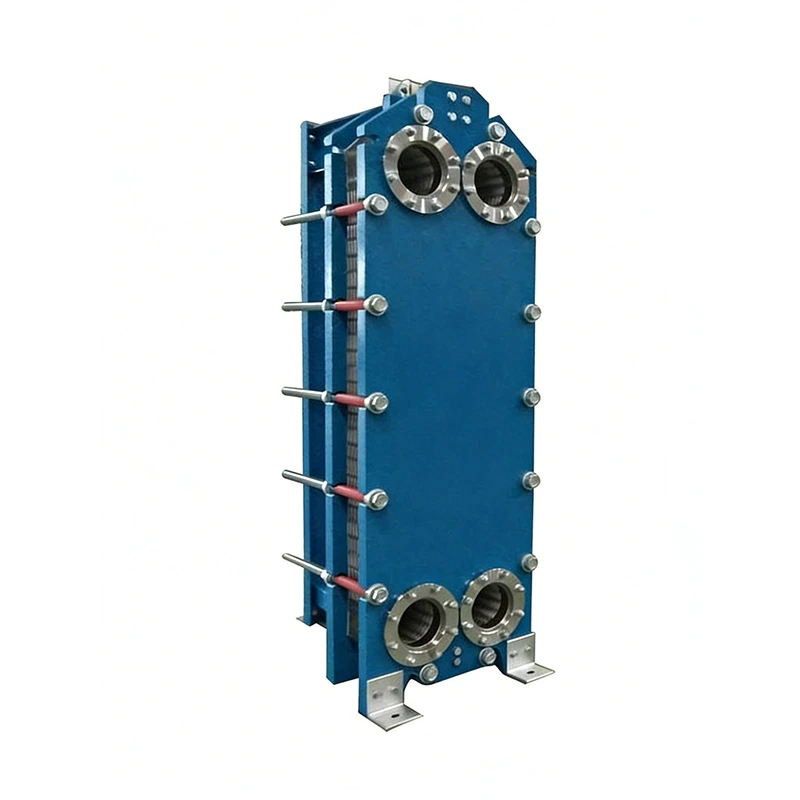

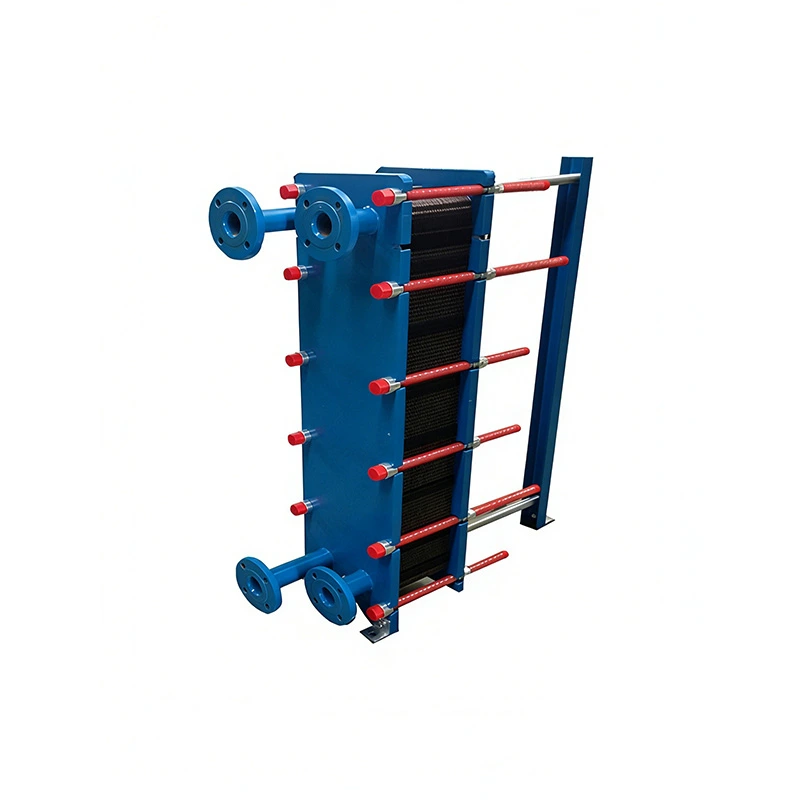

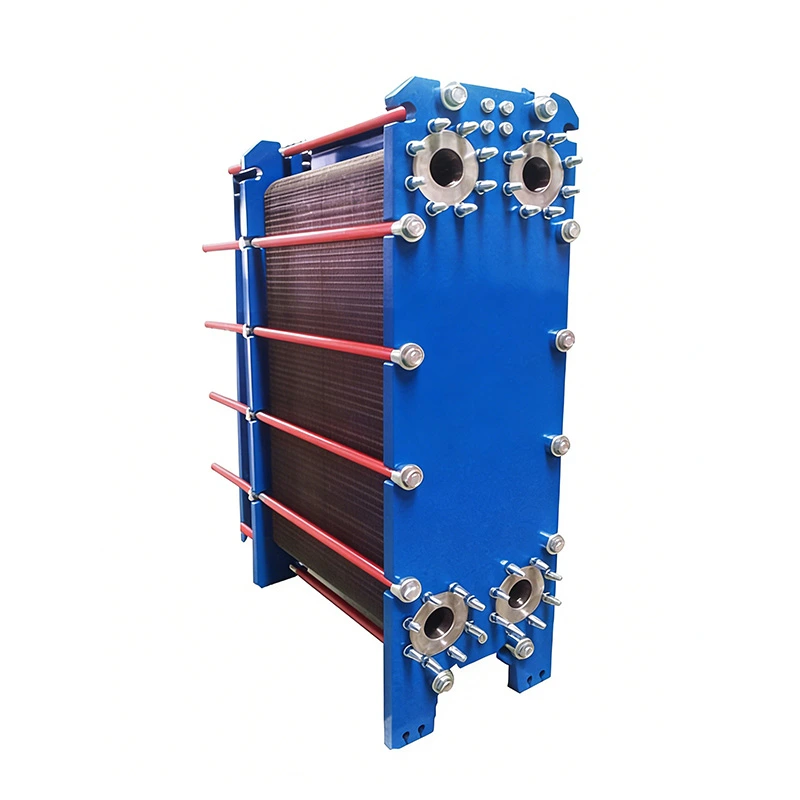

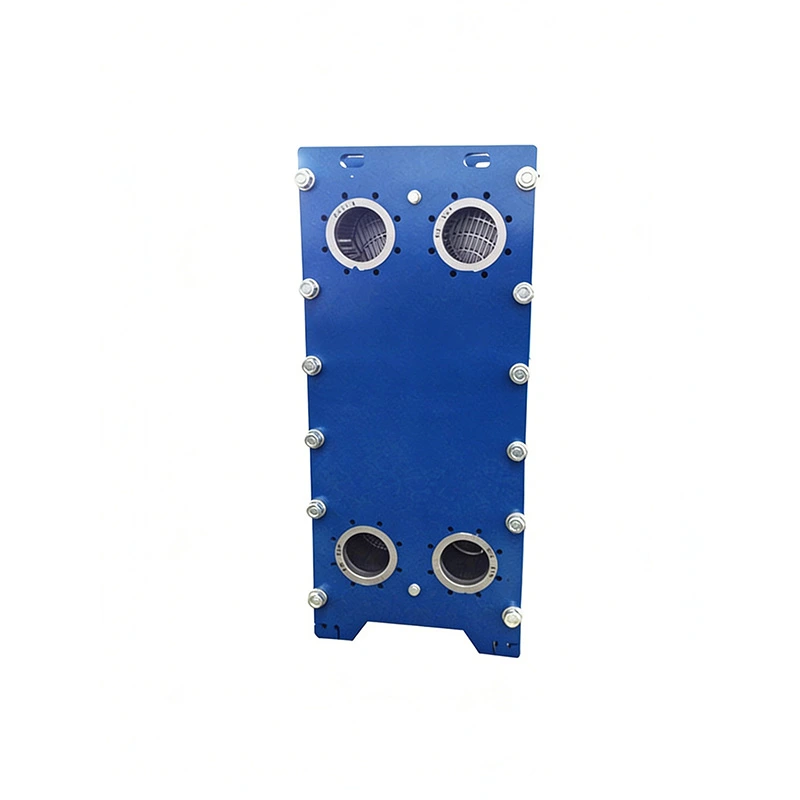

Structure: Corrugated metal plates + rubber gaskets for sealing, clamped by bolts, detachable and cleanable.
High heat transfer efficiency (water-water up to 3000–5000 W/(m²·K)), compact structure, small footprint.
Heat transfer area adjustable by adding or removing plates, easy maintenance and cleaning.
Design pressure ≤ 2.5 MPa, temperature range: -35℃ ~ 180℃ (limited by gaskets).
Low cost, suitable for medium-low pressure, medium-temperature applications requiring frequent cleaning.
High heat exchange efficiency and low operating cost
Compared with shell-and-tube heat exchanger, its heat exchange effect is 3-5 times.
Compact design
Small footprint.
Easy to install
Occupying only 1/5 to 1/8 of the space required by shell-and-tube heat exchanger.
Convenient maintenance
Easy to disassemble and clean.
Convenient expansion
Open the heat exchanger to increase the number of plates.
| Plate Materials | |
| Stainless Steel | 304/304L, 316/316L. 317, 904L |
| Special Metals | 254SMO, Titanium, Hastelloy C-276, Nickel and other available. |
| Gasket Materials | EPDM, NBR, HNBR, Viton and other available. |
HVAC, food and beverage, chemical cooling, water-to-water heat exchange,water-to-steam heat exchange
Boas can provide your solutions that enhance efficiency, reduce downtime, and support your long-term operational success.; we only need to be informed of the needed temperature,the flow rate and heat transfer areas etc.
If you have any questions about the product or if you are experiencing any difficulties, please feel free to contact us.
