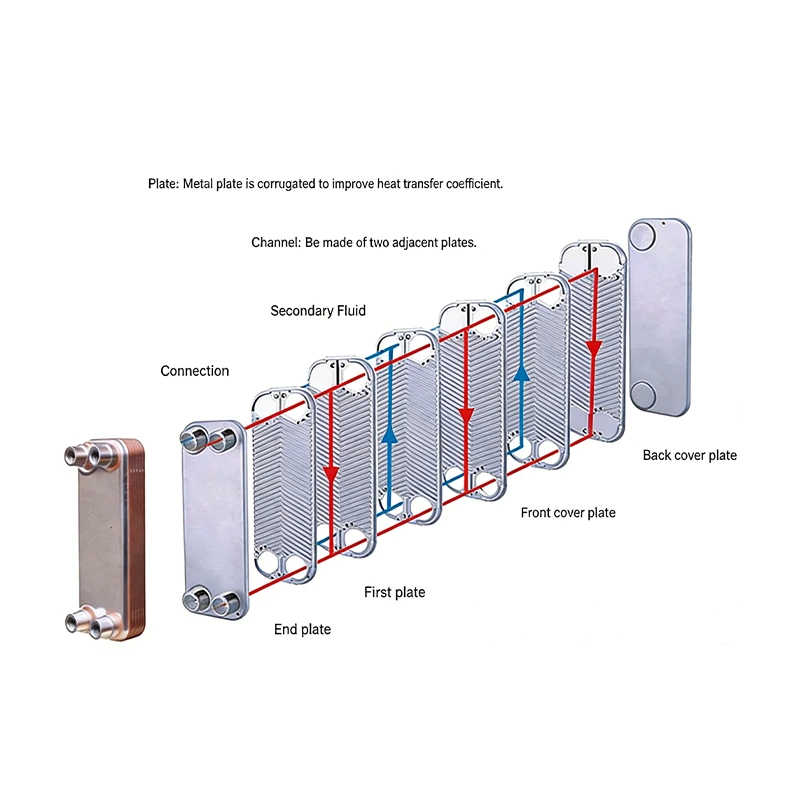

Structure: Stainless steel plates joined by vacuum brazing, gasket-free, with high integral rigidity.
Leakage-free, design pressure up to 3–4 MPa, operating temperature range: -196℃ ~ 250℃.
Smaller size and lighter weight, suitable for space-limited installations.
Non-detachable; cannot be cleaned if plates are blocked, suitable for clean media.
Compact; efficient; reliable; flexible; cost-effective; self-cleaning; customized
| Stainless Steel | 304L, 316L, Titanium, Titanium alloy |
| Brazing material | Cu,Ni |
| Plate Thickness | 0.3mm-0.6mm |
| Design Pressure | 15bar-45bar,Max 63bar |
| Design Temperature | -195° to 250° |
Refrigeration, heat pumps, hydraulic oil cooling, small-scale steam heat exchange.
Boas can provide your solutions that enhance efficiency, reduce downtime, and support your long-term operational success.; we only need to be informed of the needed temperature,the flow rate and heat transfer areas etc.
If you have any questions about the product or if you are experiencing any difficulties, please feel free to contact us.
