Filter Nozzles
- Plastic Filter Nozzle
- SS Filter Nozzle

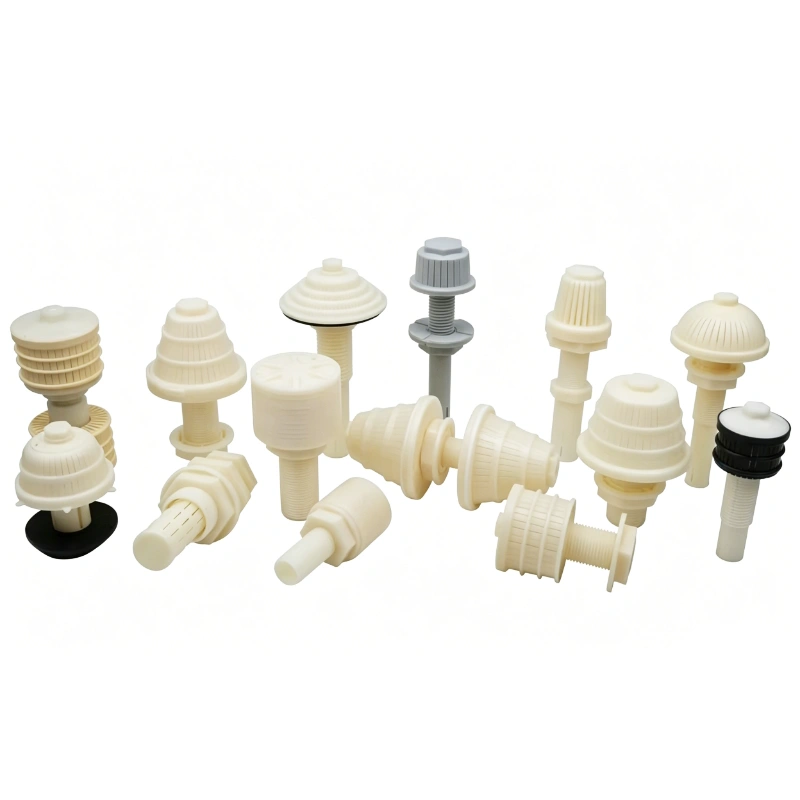

Plastic Filter Nozzle

Distributor for carbon steel and stainless steel tank

1)Model:BH173P Material:PP,Slots:0.2-0.5mm
2)Model:BH60-5
3) Model:BH60-10

4)Model:BH42-16
5) Model:BH6-53 Material:PPGV30S/PVDF Slots:0.2mm
6) Model:BH8-53 Material:PPGV30S/PVDF Slots:0.2mm

Remarks:can be produced according to the size of the tank,also slots can be choosen；suitable for general environments

Filter nozzles arms

1)Model:BH53-1/2/3/4
2) Model:BH85
3) Model:BH135

Model	A(inch)	B(mm)	L1(mm)	Slots(mm)	Material	L(mm)
BH53-1	G 1¼"	21	22	0.2/0.3/0.4/0.5	PP PPGV30S PVDF	207,271,303,335,+32...
BH53-2	1"NPT/G1"	21	17			111,175,207,239，+32...
BH53-3	3/4"NPT	18.5	17			111,175,207,239，+32...
BH53-4	M30x2	19	17			111,175,207,239，+32...
BH85	2"PT/2"NPT/G2"	50	30	0.2/0.5		73,126,179,232,285,+53...
BH85	1.5"NPT/G1.5"	37	30			73,126,179,232,285,+53...
BH135	3"NPT/ 3"BSPT	72	41			173,248,323,398,473,+75..

Long handle dual flow filter nozzles

1)Model:BH1201 Material:PP/PPGV30S

Remark:Used for sand filters,dual-media filters,multi-media filters,activated carbon filter etc.including a flow regulating ball,if a flow regulating ball is not needed,pls indicate this when placing the order.

Model	Slots(mm)	Thread	O.D. A(mm)	I.D. B(mm)	L1(mm)	L2(mm)
BH1201	0.2	M24	24	16	65	140
		1¼WW	32	21	65	140
		1¼WW	32	21	25	110

Long handle dual flow filter nozzles

2)Model:BH1208/BH1208-1 Material:PP/PPGV30S

Remark:Used for water softners,cation exchange units,anion exchange units and mixed bed units,including a flow regularing ball.

Model	Slots(mm)	Thread	O.D. A(mm)	I.D. B(mm)	L1(mm)	L2(mm)
BH1208	0.2	M24	24	16	65	130
BH1208-1	0.2	M24	24	16	65	95

Long handle dual flow filter nozzles

Normal filter nozzles

1)Model:BH1202 Material:PP/PPGV30S/PVDF

Normal filter nozzles

Model	Slots(mm)	Thread	O.D. A(mm)	I.D.B(mm)	L1(mm)	L2(mm)
		M24	24	16	50	85
		M24	24	16	70	110
	0.2	M24	24	16	50	140
BH1202	0.3	M26	26	18	50	85
BH1202	0.3	M26	26	18	50	140
	0.5	1¼WW	32	21	63	135
		1¼WW	32	21	80	/
		...

2) Model:BH1206 Material:PP/PPGV30S/PVDF

Normal filter nozzles

Model	Slots(mm)	Thread	O.D. A(mm)	I.D. B(mm)	L1(mm)	L2(mm)
		M24	24	16	40	/
		M24	24	16	55	95
	0.2	M26	26	18	50	80
BH1206	0.3	M26	26	18	63	/
	0.5	1¼WW	32	21	85	/
	0.5	1¼WW	32	21	100	/
		G¾''	26	16	20	/
		...

3) Model:BH1210 Material:PP/PPGV30S/PVDF

Normal filter nozzles

Model	Slots(mm)	Thread	O.D. A(mm)	I.D. B(mm)	L1(mm)
H1210	0.2	M24	24	16	80
H1210	0.2	1¼WW	32	21	80

Disc-type and quick-connect filter nozzles

1)Model:BH1209 Material:PP/PPGV30S/PVDF

Disc-type and quick-connect filter nozzles

Model	Slots(mm)	Disk qty (*)	Thread	O.D.A(mm)	I.D. B(mm)	L1(mm)	L2(mm)
	0.15		M24	24	16	70	110
			M24	24	16	50	140
	0.2
			M24	24	16	50	85
BH1209		2/3/6/10
	0.3
			1¼WW	32	21	65	135
	0.5
			1¼WW	32	21	80	/

Others filter nozzles

1)Model:BH1202-K Material:PP Slots:0.2/0.3/0.5mm
2)Model:BH1206-K Material:PP Slots:0.2/0.3/0.5mm
3) Model:BH1202-G Material:PP Slots:0.2/0.3/0.5mm

4) Model:BH1206-G Material:PP Slots:0.2/0.3/0.5mm
5) Model:BHG60 Material:PP/PPGV30S Slots:0.2mm ⌀A=60.3/63/75/90/114
6) Model:BHG65 Material:PP/PPGV30S Slots:0.2/0.3/0.5mm ⌀A=60.3/63/75/90/114

Anti-rotation filter nozzles

1) Model:BH1201-Z Material:PPGV30S/PVDF Slot:0.2mm
2) Model:BH1202-Z Material:PPGV30S/PVDF Slots:0.2/0.3/0.5mm
3) Model:BH1206-Z Material:PPGV30S/PVDF Slots:0.2/0.3/0.5mm
4) Model:BH1208-Z Material:PPGV30S/PVDF Slot:0.2mm

Double-head filter nozzles

Model:BH1201
BH1202
BH1206

BH1209
BH1203N
BH1201D

BH1206D
BH1206D1
BH1210D

BH1210D1
BH1203ND

(Upper filter nozzle)	Slots(mm)	(Lower filter nozzle)	Slots(mm)
H1201	0.2	H1201D	0.2
H1202	0.2/0.3/0.5	H1206D	0.2/0.3/0.5
H1206	0.2/0.3/0.5	H1206D1	0.2/0.3/0.5
H1209	0.2/0.3/0.5	H1210D	0.2
H1203N	0.2/0.3	H1210D1	0.2
		H1203ND	0.2/0.3
