BOAS Series Plate Heat Exchanger Plates And Gaskets Spare Parts

Our comprehensive range of services includes supplying replacement parts for heat exchangers such as M series, P series, A series and other non-OEM models.

Description

Boas has its own moulds and production factories, which can ensure product quality and delivery time,regardless of the brands,also our plates spare parts are fully compatible with the original M series heat exchangers,ensuring high performance and durability.

Our comprehensive range of services includes supplying replacement parts for heat exchangers such as M series, P series, A series and other non-OEM models.

The below show you listed models are just part of the items,so pls feel free to sent us all your needed and inquires an email at rose@plateheatexchangercn.com, and we are able to assist you further for details,and you can replace your plates and gaskets at a lower price.

Specification

M Series

M3	M6	M6-M	M10	M10-M	M15	M15-M	M20-M	MX25-B	MX25-M	M30
M3X	M6B	M6M	M10B	M10M	M15B	M15M	M20M	MX25B	MX25M	M30
M-3	M-6	M-6M	M-10	M-10M	M-15	M-15M	M-20M	MX-25B	MX-25M	M-30
M3-X	M6-B	M6-M	M10-B	M10-M	M15-B	M15-M	M20-M	MX25-B	MX25-M	M30
M3-FG	M6-FG	M6-MFG	M10-BFG	M10-MFG	M15-BFG	M15-MFG	M20-MFG	MX25B-FG	MX25M-FG	M30-FG
M3	M6-FD	M6-MFD	M10-BFD	M10-MFD	M15-BFD	M15-MFD	M20-MFD	MX25B-FD	MX25M-FD	M30-FD
M3D	M6D	M6-MD	M10-BD	M10-MFM	M15-BD	M15-MFM	M20-MFM	MX25B-FS	MX25M-FS	M30D

A series

A3	A10	A10B	A15	A15B	A20	A20B
A30	A35	A45	AK20	AX30B	AM10B	AM20B

P series

P5	P12	P13	P14	P15	P16	P17	P2	P20
P22	P122	P132	P14/L1	P31	P32	P36	P41	P45
P225	P124	P135	P145	P25	P26	P30	P252

Plates

Pattern:H,V,Free Flow

Material: 304/304L, 316/316L, 254SMO, Titanium, Hastelloy C-276, Nickel 200/201.

Plate Thickness:0.4/0.5/0.6MM

Material	Applicable Mediums	Thickness
304SS	Pure Water/Edible oil Ethanol	0.4/0.5/0.6
316SS	Water/ Edible oil/ Ethanol/ Carbonic acid/ 30% Sulphuric acid	0.4/0.5/0.6
254SMO	Saline / Inorganic acid	0.6
Titanium	Sea water/130° C Chloride	0.5 /0.6
Hastelloy C-276	Organic acid / High temperature HF acid/ Hydrochloric acid (<40%) / Phosphoric acid (< 50%) / Chloride / Fluoride	0.6
Nickle 200/201	High temperature 50~70% Alkali	0.6

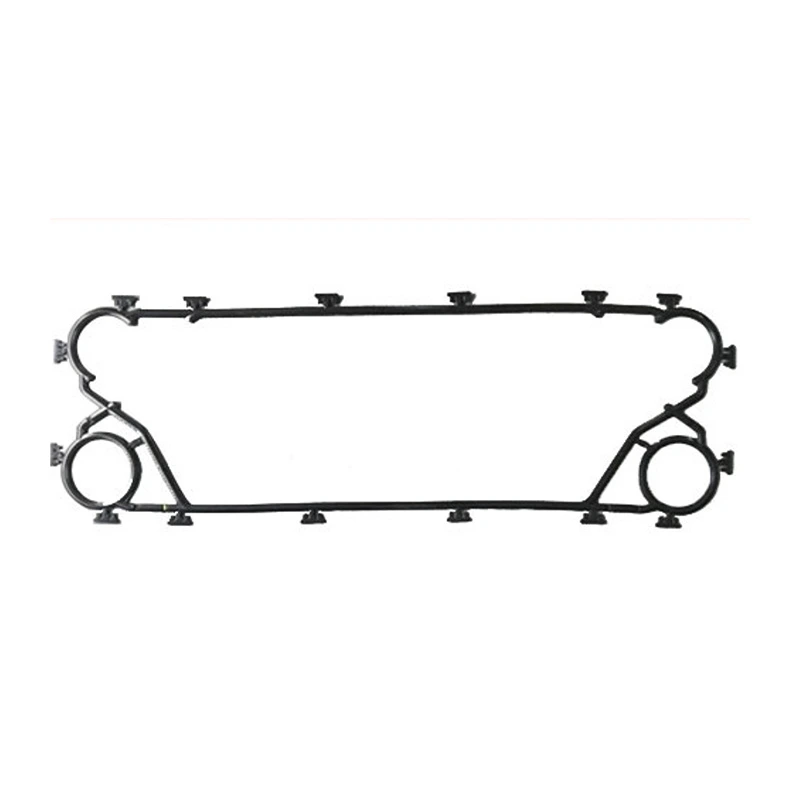

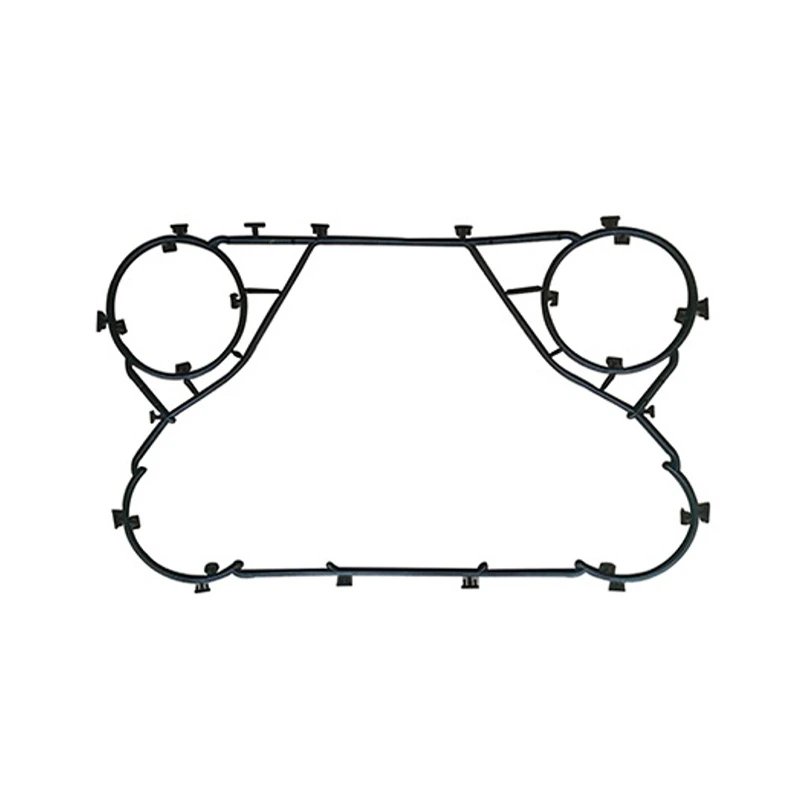

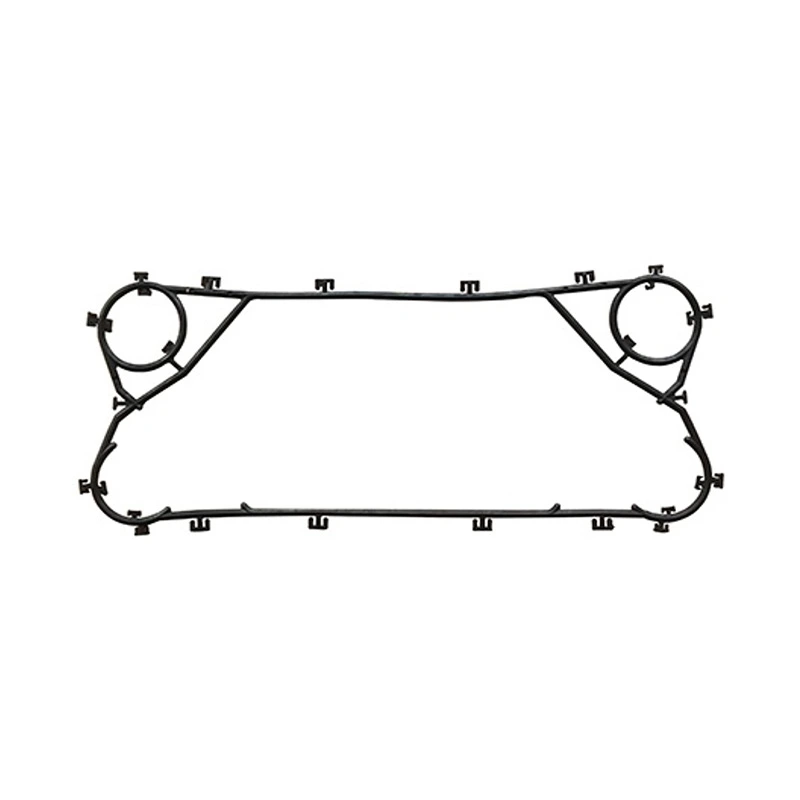

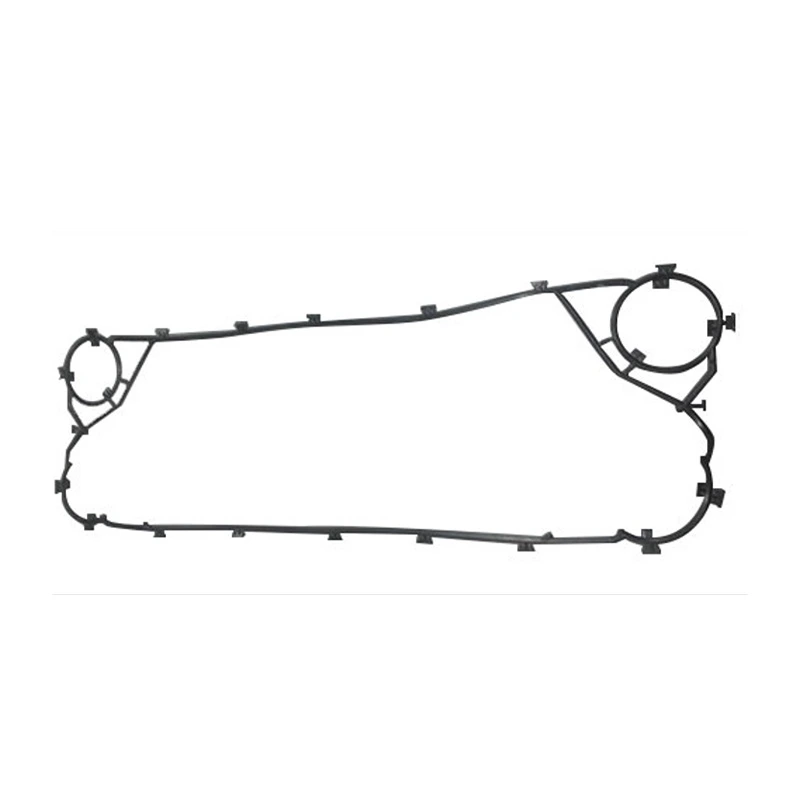

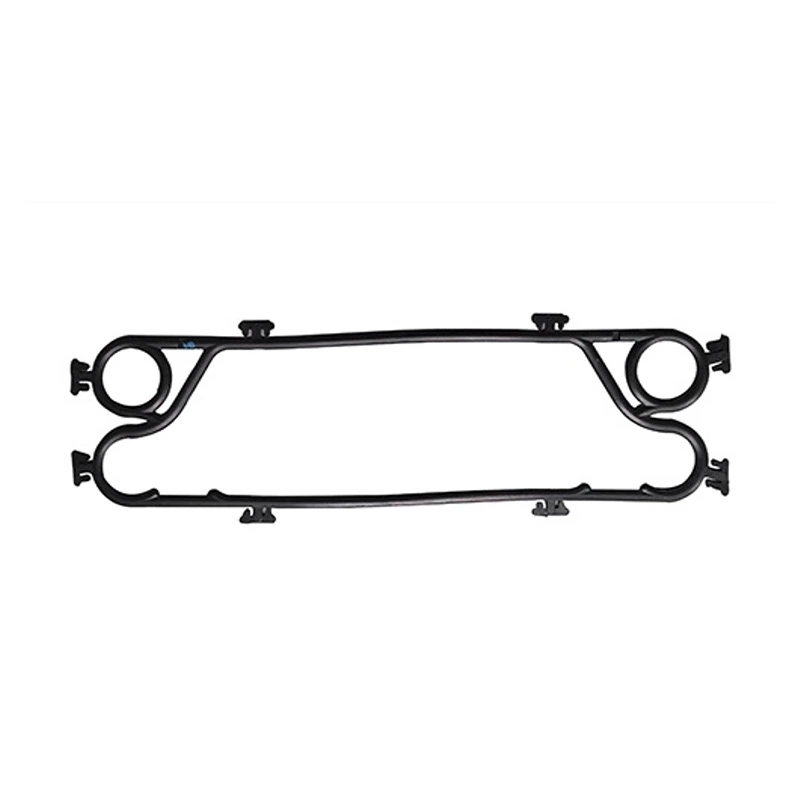

Gaskets

Rubber	Color Code	Shore A Hardness	Instantaneous Temperature		Continuous Operating Temperature
Rubber	Color Code	Shore A Hardness	Min (°C/℉)	Max (°C/℉)	Min (°C/℉)	Max (°C/℉)
NBR Standard		75±5	-30/-22	110/230	-10/14	100/212
NBR Food		75±5	-30/-22	110/230	-10/14	100/212
NBR High Temperature		75±5	-30/-22	120/248	0/32	110/230
NBR High Temperature Food		75±5	-30/-22	120/248	0/32	110/230
HNBR		78±5	-30/-22	160/320	-20/-4	150/302
EPDM Standard		80±5	-54/-65.2	150/302	-10/14	140/284
EPDM Food		80±5	-54/-65.2	150/302	-10/14	140/284
EPDM High Temperature		80±5	-54/-65.2	165/339	0/32	155/311
EPDM High Temperature Food		80±5	-54/-65.2	165/329	0/32	155/311
Viton A		80±5	-15/-5	200/392	5/41	180/356
Viton G		80±5	-15/-5	200/392	5/41	180/356
NEOPREN/CR		80±5	-30/-22	110/230	-25/-13	80/176
